Great Tables reached v1.0.0 at the end of September, and v1.1.0 followed only three weeks later. Crossing into 1.x territory means that the library’s core API is settled and that the work ahead consists of extending it rather than reshaping it. The two releases, taken as a whole, move the library forward along three lines:

  1. tables can now present specialized kinds of content (fractions, chemical formulas, links) according to their proper conventions
  2. they can respond to the values they contain, through value-based styling and a considerably more capable data_color()
  3. they hold up better structurally, with multi-level stubs, decimal alignment, and semantic HTML that assistive technologies can navigate

This post takes each of these additions in turn and pairs each with a functional example. Every example draws on one of the datasets bundled with the package, which are now reachable through a single new function, load_dataset(). Passing it a dataset name and tbl_type="polars" (or "pandas", the default) returns the corresponding DataFrame, so the examples below can be run as written after upgrading to v1.1.0.

New formatters for specialized values#

Some values have conventions of their own that a general-purpose number formatter cannot honor. A quantity like 1.75 hours reads more naturally as “1 3/4” in some contexts, a list of items is often labeled A, B, C rather than 1, 2, 3, and a chemical formula looks odd without its specialized typsetting (e.g., subscripts, brackets, etc.). Version 1.0.0 adds formatters for each of these cases: fmt_fraction(), fmt_index(), and fmt_chem().

The films dataset records every film in competition at the Cannes Film Festival since 1946, with running times stored as strings like "1h 44m". If we convert those to decimal hours, fmt_fraction() can present them as mixed fractions. Its accuracy= argument governs how fine the fractions may be: the default "low" permits single-digit denominators, "med" and "high" allow two and three digits, and an integer fixes the denominator by that number (so accuracy=4 gives quarters). The layout= argument chooses between ordinary inline fractions and a diagonal form with a raised numerator and lowered denominator, which is how fractions are usually typeset. We’ll show both side by side and use fmt_index() to turn a column of integers into lettered row labels.

import polars as pl
from great_tables import GT, md
from great_tables.data import load_dataset

films = load_dataset("films", tbl_type="polars")

loach = (
    films.filter(pl.col("director") == "Ken Loach")
    .head(8)
    .with_columns(
        hours=(
            pl.col("run_time").str.extract(r"(\d+)h").cast(pl.Float64).fill_null(0)
            + pl.col("run_time").str.extract(r"(\d+)m").cast(pl.Float64).fill_null(0) / 60
        )
    )
    .with_columns(hours_diag=pl.col("hours"), idx=pl.int_range(1, pl.len() + 1))
    .select("idx", "title", "year", "run_time", "hours", "hours_diag")
)

(
    GT(loach)
    .tab_header(title="Ken Loach at Cannes", subtitle="Running times as fractions of an hour")
    .fmt_index(columns="idx", pattern="{x}.")
    .fmt_fraction(columns="hours")
    .fmt_fraction(columns="hours_diag", layout="diagonal")
    .cols_label(
        idx="", title="Film", year="Year", run_time="Listed",
        hours="Inline", hours_diag="Diagonal",
    )
    .tab_spanner(label="Hours", columns=["hours", "hours_diag"])
)

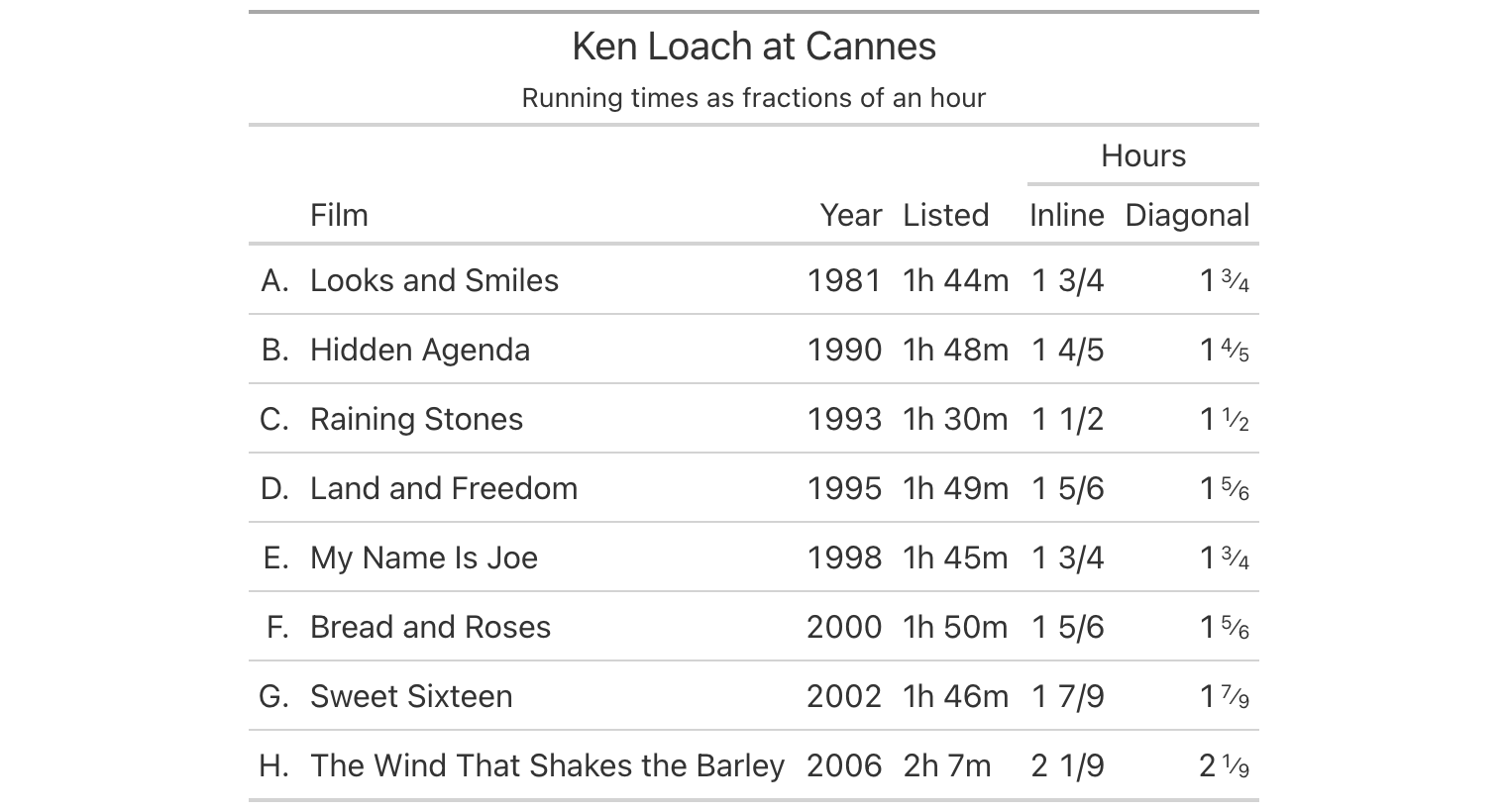

Eight Ken Loach films with lettered row labels A through H and running times shown as mixed fractions of an hour, in both inline and diagonal layouts

The fmt_index() method maps 1 to “A”, 2 to “B”, and so on, and its pattern= argument lets us append a period to each label. For values beyond 26, the index_algo= argument decides what happens next: "repeat" doubles the letter (“AA”, “BB”), while "excel" follows the spreadsheet convention of column names (“AA”, “AB”). There is also a case= argument for lowercase labels.

The fmt_chem() method handles our own brand of chemistry notation and renders it with the correct typography. So you get to incorporate things like: subscripted atom counts, superscripted charges, isotope notation, stoichiometric coefficients, various reaction arrows, etc. The reactions dataset, which contains rate constants for the gas-phase reactions of organic compounds with atmospheric oxidants, stores its formulas as plain strings and makes for a good test of this method.

reactions = load_dataset("reactions", tbl_type="polars")

compounds = (
    reactions.filter(
        pl.col("cmpd_name").is_in([
            "methane", "ethanol", "acetone", "benzene", "toluene",
            "dimethyl sulfide", "isoprene",
        ])
    )
    .select("cmpd_name", "cmpd_formula", "cmpd_mwt", "OH_k298")
    .sort("cmpd_mwt")
)

(
    GT(compounds, rowname_col="cmpd_name")
    .tab_header(title="Reaction Rates with the Hydroxyl Radical", subtitle=md("Rate constants at 298 K"))
    .fmt_chem(columns="cmpd_formula")
    .fmt_number(columns="cmpd_mwt", decimals=2)
    .fmt_scientific(columns="OH_k298", decimals=2)
    .cols_label(
        cmpd_formula="Formula",
        cmpd_mwt="Mol. Weight",
        OH_k298=md("k<sub>OH</sub>"),
    )
)

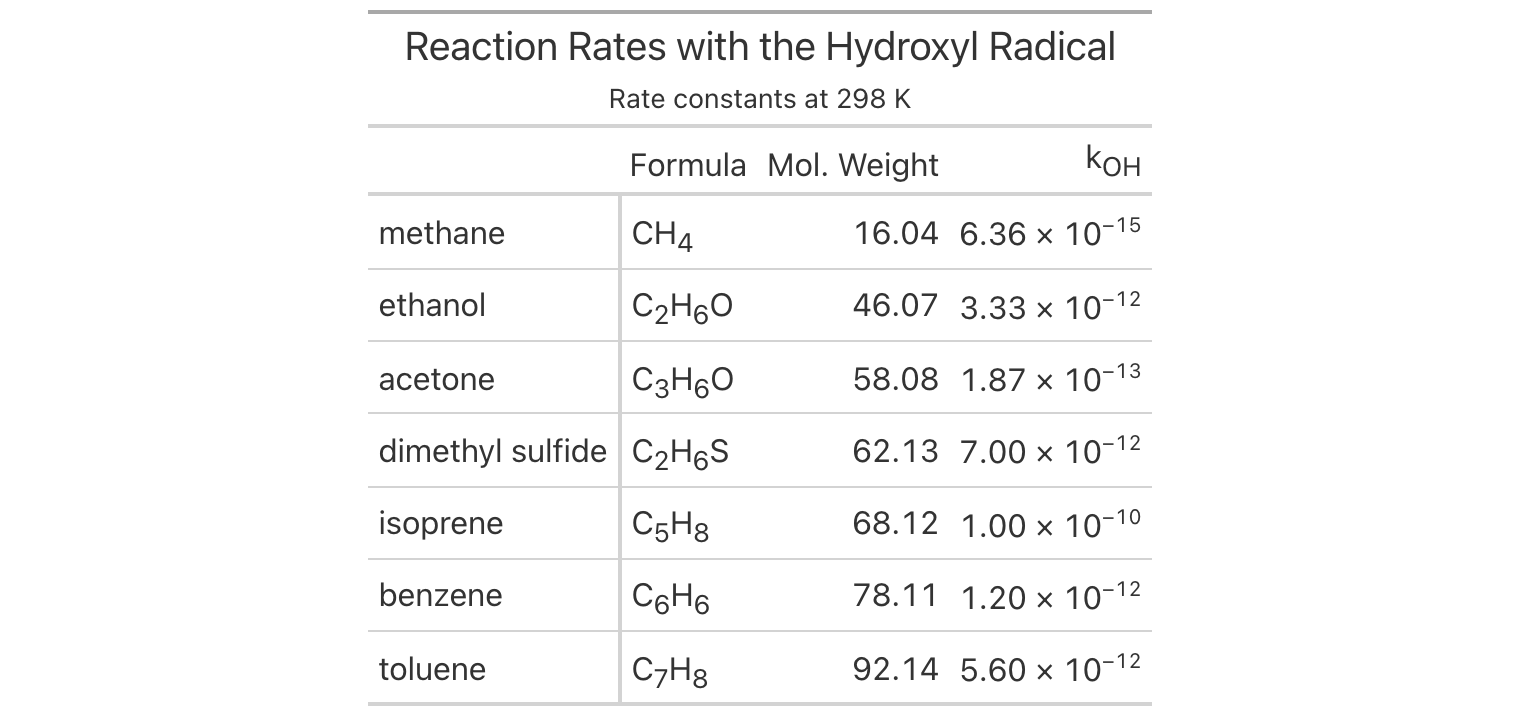

Seven organic compounds with their chemical formulas properly subscripted, molecular weights, and hydroxyl radical rate constants in scientific notation

The formulas here are simple ones, but the same method will typeset an entire reaction such as "2 CH3OH -> CH3OCH3 + H2O" placed in a cell, and it does so in LaTeX output as well as HTML as of v1.1.0.

Tables are frequently a point of departure. You might need a table with a list of resources, a directory of people, or an index of documents. The fmt_url() and fmt_email() methods turn columns of URLs and email addresses into working links, so the reader can follow them directly from the table. Both methods accept a fixed label (or a function that computes one from each value), and both can render their links either as underlined text or as small buttons with configurable fill, outline, and width.

The films dataset includes an IMDb link for each film, which is a good candidate for a button. Here we give every link the same short label and a fill color that matches IMDb’s own.

wenders = (
    films.filter(pl.col("director") == "Wim Wenders")
    .select("year", "title", "run_time", "imdb_url")
    .head(6)
)

(
    GT(wenders)
    .tab_header(title="Wim Wenders at Cannes")
    .fmt_url(columns="imdb_url", label="IMDb", as_button=True, button_fill="#F5C518", color="black")
    .cols_label(year="Year", title="Film", run_time="Running Time", imdb_url="")
)

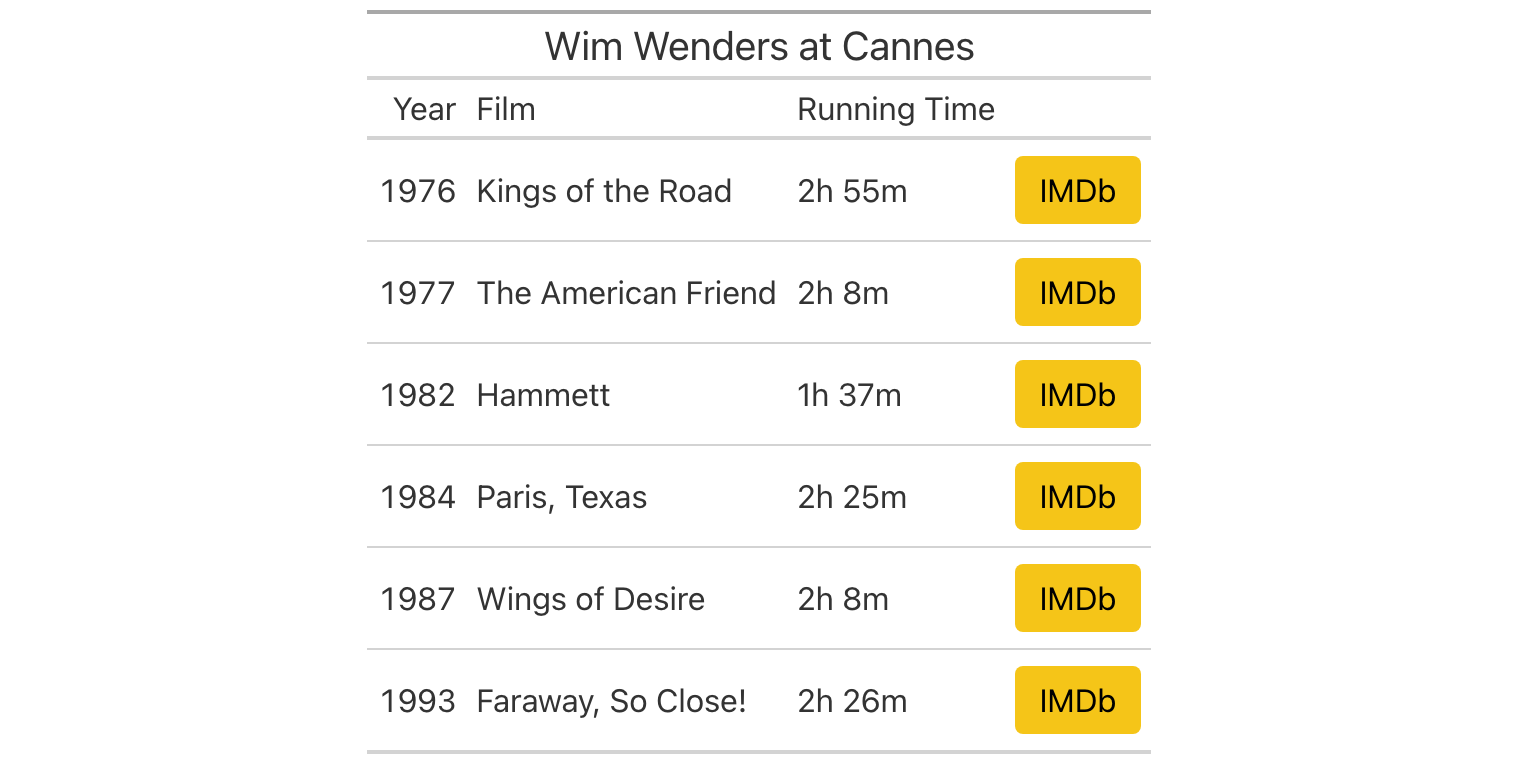

Six Wim Wenders films with a yellow IMDb button in the final column of each row

The fmt_email() method works in the same way, producing mailto: links. In its most basic form it simply makes each address clickable, as in this small directory drawn from the peeps dataset (full of fictional people).

peeps = load_dataset("peeps", tbl_type="polars")

contacts = (
    peeps.head(5)
    .with_columns(name=pl.col("name_given") + " " + pl.col("name_family"))
    .select("name", "city", "state_prov", "email_addr")
)

(
    GT(contacts, rowname_col="name")
    .fmt_email(columns="email_addr")
    .cols_label(city="City", state_prov="State", email_addr="Email")
)

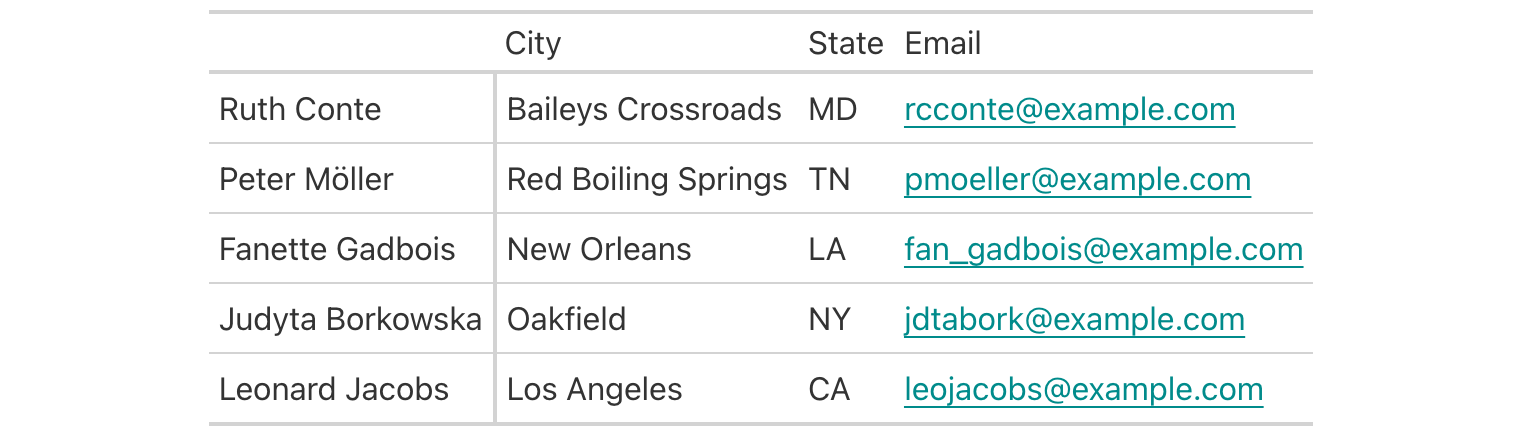

Five people with their city, state, and an underlined, clickable email address

The images in this post are static, of course, but in HTML output these links are live. Links open in a new tab by default, which can be changed through the target= argument, and in LaTeX output they are now written with \href so that they remain clickable in a typeset PDF.

Styling cells by their values with tab_style_body()#

The tab_style() method has always asked a question about where: you name a location (a column, a set of rows, the column labels) and the style is applied there. Often, though, the question we want to ask is about what. We want every cell containing a particular value to stand out, or every row in which some condition holds, regardless of where those cells happen to sit. The new tab_style_body() method is built for this. It matches body cells by exact values (values=), by a regular expression applied to the cell’s text (pattern=), or by an arbitrary predicate function (fn=), and the targets= argument decides whether the style should be applied to the matched cell alone, its whole row, or its whole column.

The metro dataset describes the stations of the Paris Métro, including the lines that serve each one, the RER commuter-rail connections, and annual passenger counts. In the table below we highlight every station connected to RER line A, extending the fill across the entire row (and into the stub), and separately set in bold purple the line listings that include line 14 (the fully automated line).

from great_tables import style

metro = load_dataset("metro", tbl_type="polars")

metro_busy = (
    metro.select("name", "lines", "connect_rer", "passengers")
    .drop_nulls("passengers")
    .top_k(12, by="passengers")
    .sort("passengers", descending=True)
)

(
    GT(metro_busy, rowname_col="name")
    .tab_header(title="The Busiest Stations of the Paris Métro")
    .fmt_integer(columns="passengers")
    .sub_missing(columns="connect_rer", missing_text="")
    .cols_label(lines="Lines", connect_rer="RER", passengers="Passengers")
    .tab_style_body(
        style=style.fill(color="#FFF3C4"),
        pattern=r"\bA\b",
        targets="row",
        extents=["body", "stub"],
    )
    .tab_style_body(
        style=style.text(weight="bold", color="#6E3FA3"),
        columns="lines",
        pattern=r"\b14\b",
    )
)

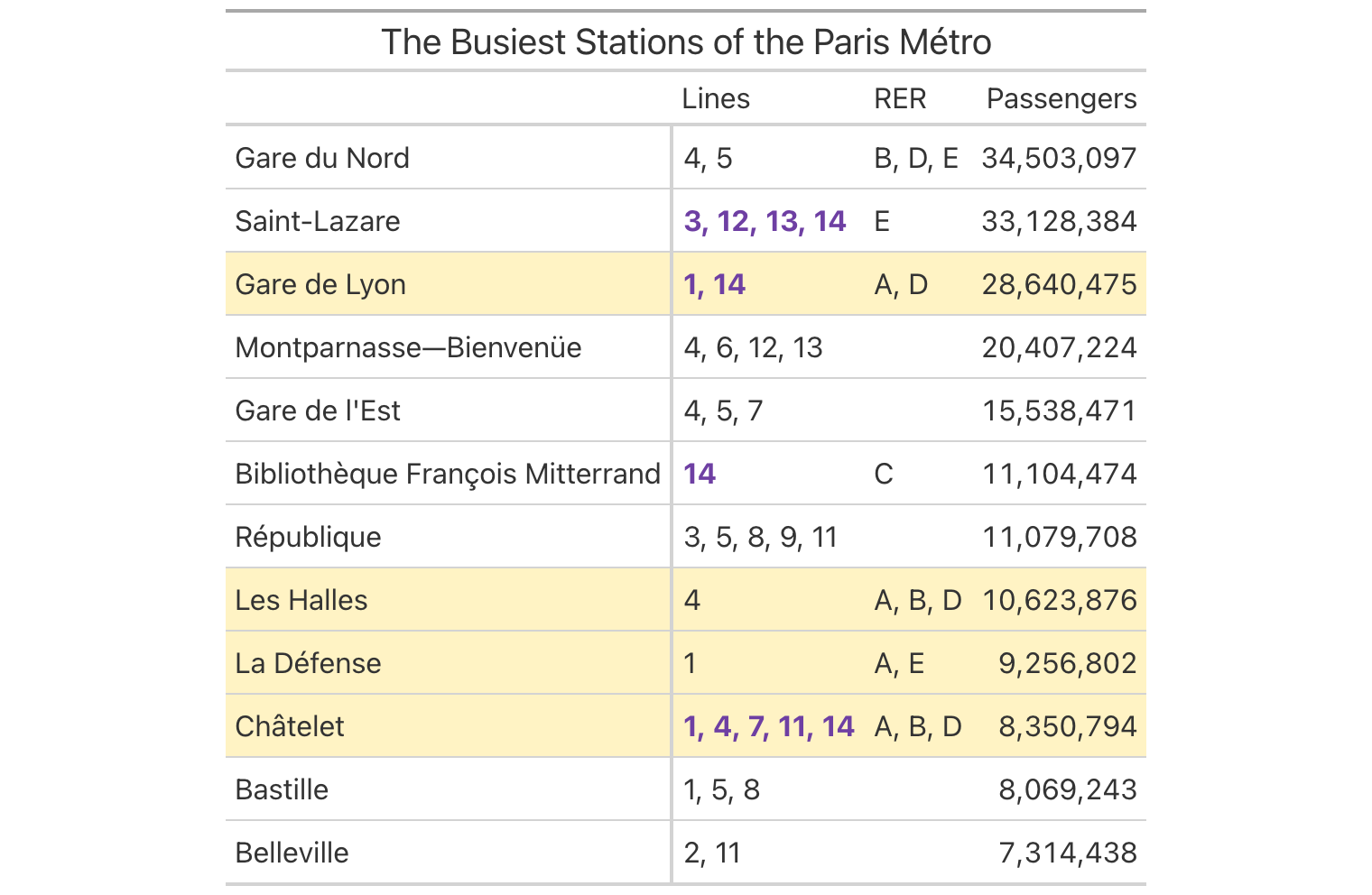

The twelve busiest Paris Métro stations, with rows for stations on RER A filled in pale yellow and the line listings that include line 14 set in bold purple

The word boundaries in each pattern are pretty important here. Without them, "14" would also match a hypothetical line 140, and "A" would match any text containing that letter. Matching is performed against the underlying data rather than the formatted output, so a predicate passed to fn= receives the raw value (a number, a date, a string) and can compare it directly.

Multi-column stubs#

The stub is the column of row labels on the left side of a table, and until now it could hold only a single column. Many datasets, however, have a natural hierarchy among their identifying columns: region and city (towny), manufacturer and model (gtcars), etc. In v1.1.0, the rowname_col= argument accepts a list of column names, and the stub is built from all of them, with repeated values in the outer levels merged into a single spanning cell.

Once a stub has several levels, we need a way to refer to each one. The new stub selector serves this purpose in any columns= argument: stub alone refers to the whole stub, and stub(n) refers to a single level, counted from the right. In the example below, built from the gtcars dataset of high-performance cars, stub(1) is the model and stub(2) is the manufacturer, and we give each its own width. We also bold the manufacturer level alone by passing columns= to loc.stub().

from great_tables import loc, stub

gtcars = load_dataset("gtcars", tbl_type="polars")

cars = (
    gtcars.filter(pl.col("mfr").is_in(["Ferrari", "Lamborghini", "Porsche"]))
    .select("mfr", "model", "year", "hp", "trq", "msrp")
    .sort("mfr", "model")
)

(
    GT(cars, rowname_col=["mfr", "model"])
    .tab_header(title="Three European Marques")
    .fmt_integer(columns=["hp", "trq"])
    .fmt_currency(columns="msrp", decimals=0)
    .cols_label(year="Year", hp="HP", trq="Torque", msrp="MSRP")
    .cols_width(cases={stub(2): "120px", stub(1): "140px"})
    .tab_style(style=style.text(weight="bold"), locations=loc.stub(columns="mfr"))
    .tab_stubhead(label="Car")
)

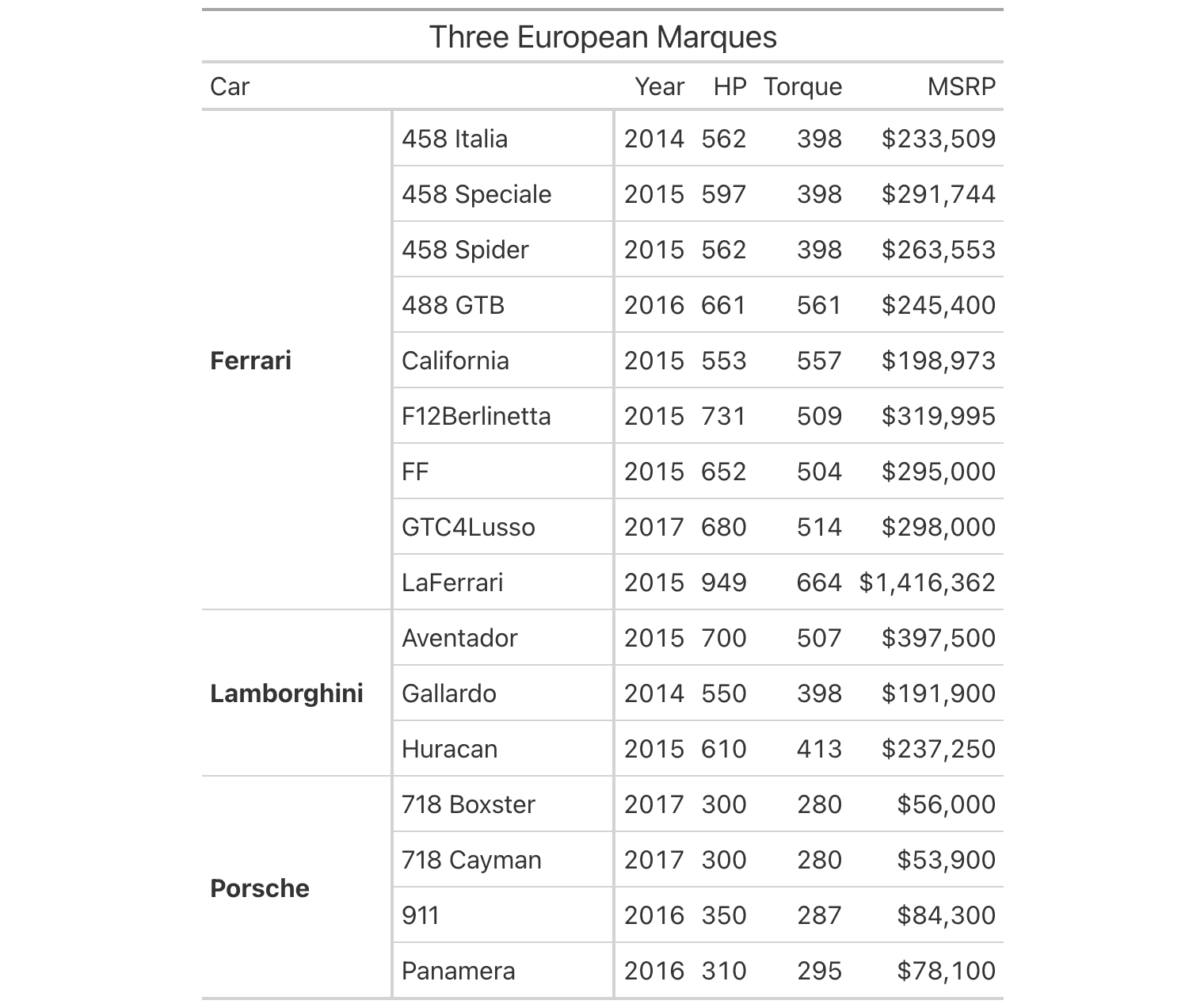

Sixteen cars from Ferrari, Lamborghini, and Porsche, with a two-level stub in which each manufacturer name spans the rows of its models

A related change accompanies this feature. Stub and row group columns are now excluded from column selections, as was always the intent, so that a method called without columns= targets only the body. One visible consequence is that data_color() no longer colors the cells of the stub when it is applied to the whole table.

Lining up numbers with cols_align_decimal()#

Right-aligning a column of numbers works well when every value has the same number of decimal places. When they differ, the digits of equal magnitude no longer sit above one another, and the eye must work harder to compare values. The new cols_align_decimal() method solves this by padding each formatted value with figure spaces (spaces exactly as wide as a digit) so that the decimal marks fall in a single vertical line. Because it operates after formatting, it works with the output of any fmt_*() method, including values with suffixes like %.

The constants dataset of fundamental physical constants is about as varied in magnitude as data gets. In the table below, the same values appear twice: once with ordinary right alignment and once aligned on the decimal mark.

constants = load_dataset("constants", tbl_type="polars")

const_mini = (
    constants.filter(
        pl.col("name").is_in([
            "speed of light in vacuum",
            "standard acceleration of gravity",
            "molar gas constant",
            "Faraday constant",
            "fine-structure constant",
            "inverse fine-structure constant",
            "proton-electron mass ratio",
            "Wien wavelength displacement law constant",
        ])
    )
    .select("name", "value", "units")
    .with_columns(aligned=pl.col("value"))
    .select("name", "value", "aligned", "units")
)

(
    GT(const_mini, rowname_col="name")
    .tab_header(title="A Few Physical Constants")
    .fmt_number(columns=["value", "aligned"], decimals=6, drop_trailing_zeros=True)
    .cols_align_decimal(columns="aligned")
    .sub_missing(columns="units", missing_text="")
    .fmt_units(columns="units")
    .cols_label(value="Default", aligned="Aligned", units="Units")
)

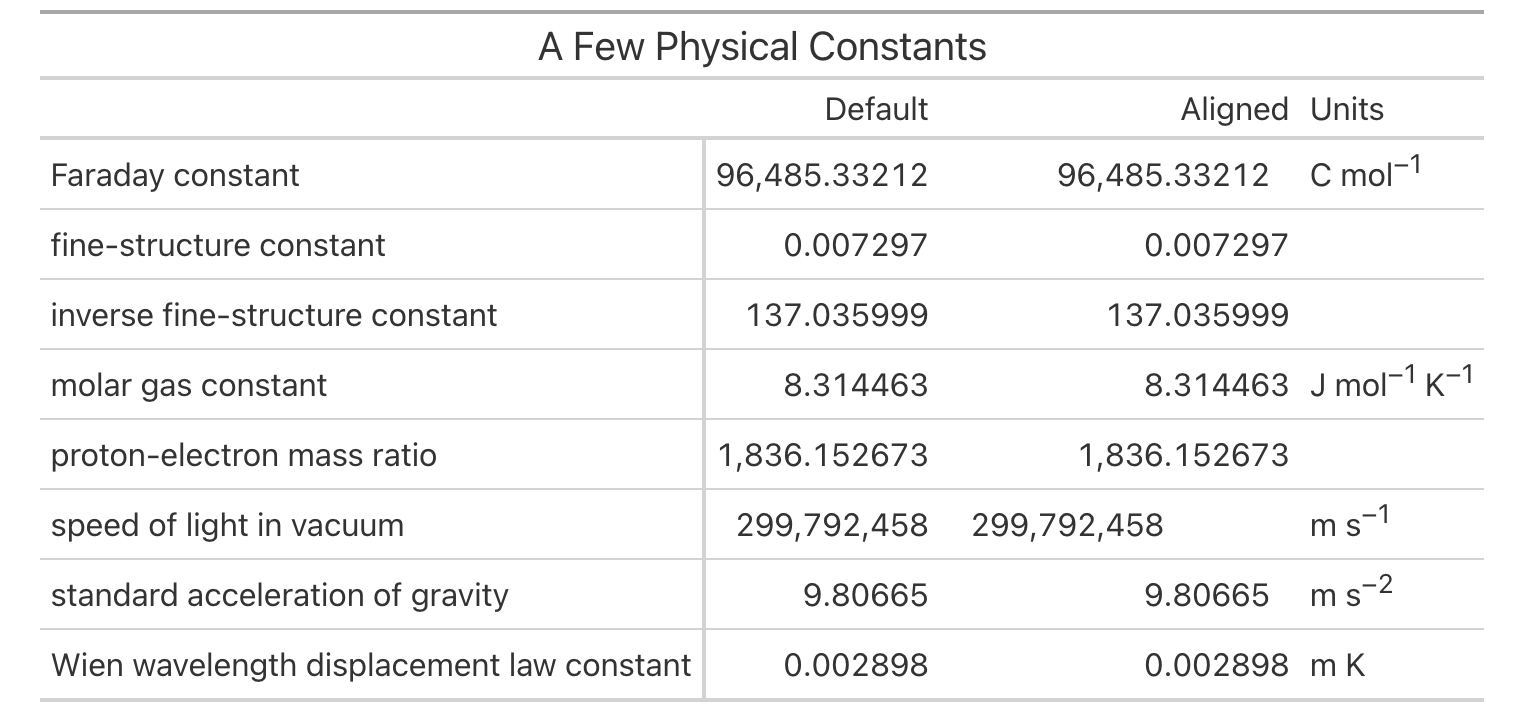

Eight physical constants shown twice, first right-aligned and then aligned on the decimal point, with units typeset in a final column

In the aligned column, the integer parts and the fractional parts each occupy their own region, and the relative magnitudes of the constants become apparent at a glance. Locales that use a comma as the decimal mark are handled through the dec_mark= or locale= arguments (or by the locale set on the table itself).

A more capable data_color()#

The data_color() method colors cells according to their values, and v1.1.0 gives it more new capabilities than any other part of the library. Three new arguments change what kinds of color scales are possible, and two changes to its defaults improve every table that uses it.

The first of the new arguments is midpoint=. Many quantities have a meaningful center (a change of zero, a ratio of one, a score of fifty) and should be colored with a diverging palette that fades to neutral at that center and intensifies in opposite directions on either side. Setting midpoint=0 centers the palette there and, unless you supply a domain= yourself, makes the domain symmetric around it. The towny dataset records population change across five census periods, and with a red-to-blue palette, growth and decline become visually opposed.

import polars.selectors as cs

towny = load_dataset("towny", tbl_type="polars")

towny_change = (
    towny.filter(
        (pl.col("csd_type") == "city")
        & pl.col("name").is_in([
            "Toronto", "Ottawa", "Mississauga", "Hamilton", "London", "Kitchener",
            "Windsor", "Greater Sudbury", "St. Catharines", "Kingston", "Waterloo",
            "Thunder Bay",
        ])
    )
    .select("name", cs.starts_with("pop_change"))
    .sort("name")
)

(
    GT(towny_change, rowname_col="name")
    .tab_header(title="Population Change in Twelve Ontario Cities")
    .fmt_percent(columns=cs.starts_with("pop_change"), decimals=1)
    .cols_label(
        pop_change_1996_2001_pct="1996–01",
        pop_change_2001_2006_pct="2001–06",
        pop_change_2006_2011_pct="2006–11",
        pop_change_2011_2016_pct="2011–16",
        pop_change_2016_2021_pct="2016–21",
    )
    .data_color(palette=["#B2182B", "#F7F7F7", "#2166AC"], midpoint=0)
)

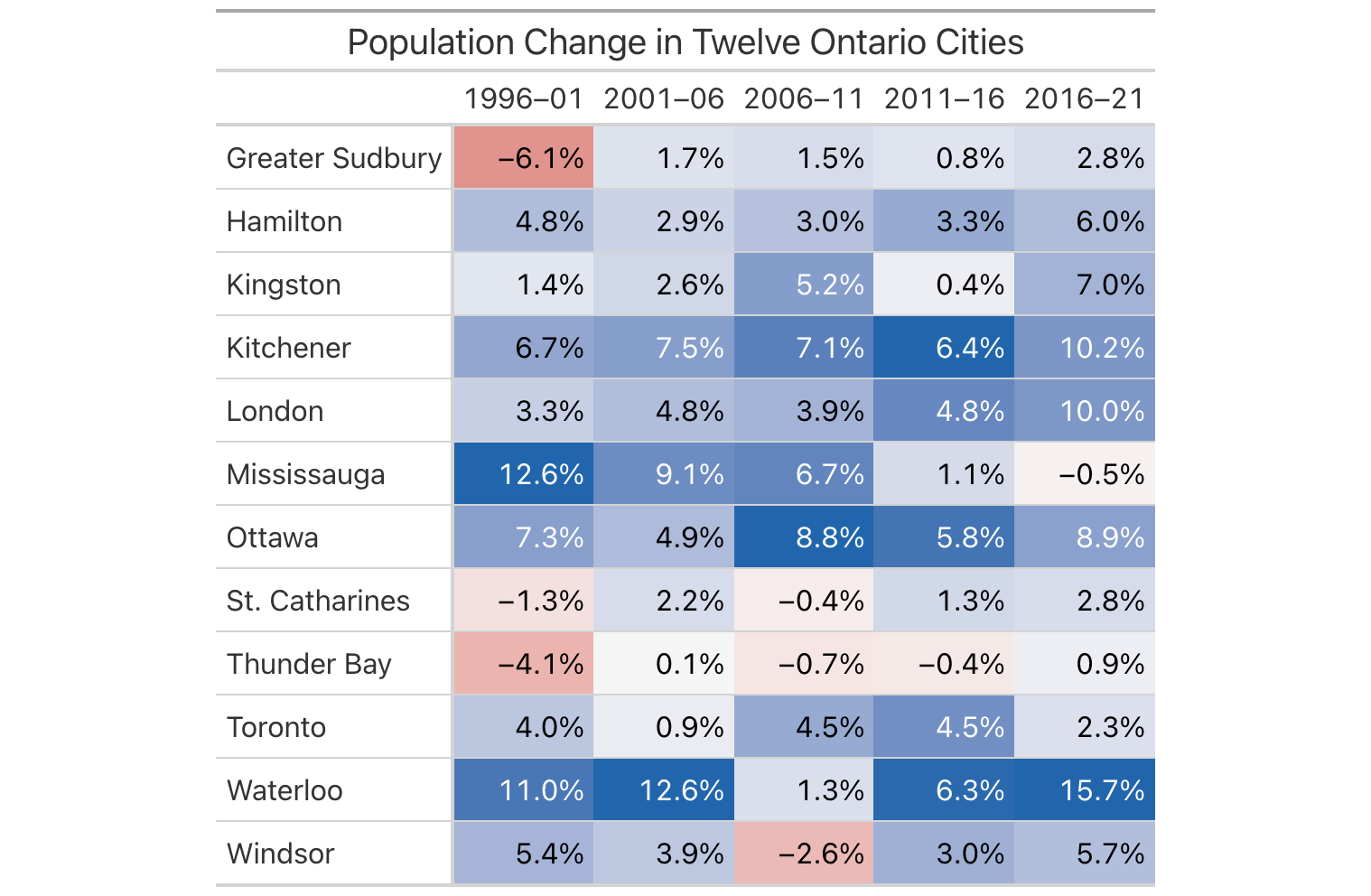

Population change for twelve Ontario cities over five census periods, with declines in shades of red, growth in shades of blue, and near-zero values close to white

Because the domain is symmetric, a decline of 4% receives exactly as much red as a gain of 4% receives blue. The handful of red cells stand out clearly against the general pattern of growth.

The second new argument is direction=. By default, data_color() computes its scale down each column, which is the right choice when the columns hold different measurements. Sometimes, however, it is the rows that are internally comparable and the columns that are not. In the following table of national populations by decade, from the countrypops dataset, coloring by column would merely tell us that Brazil is larger than Ireland. With direction="row", each country receives its own scale, and the colors instead trace the shape of each country’s history.

countrypops = load_dataset("countrypops", tbl_type="polars")

pops_wide = (
    countrypops.filter(
        pl.col("country_name").is_in(["Nigeria", "Brazil", "Ireland", "Germany", "Japan", "Bulgaria"])
        & pl.col("year").is_in(list(range(1960, 2021, 10)))
    )
    .pivot(on="year", index="country_name", values="population")
)
year_cols = [c for c in pops_wide.columns if c != "country_name"]

(
    GT(pops_wide, rowname_col="country_name")
    .tab_header(title="Population by Decade", subtitle="Each row is colored on its own scale")
    .fmt_integer(columns=year_cols, compact=True)
    .data_color(palette="viridis", direction="row")
)

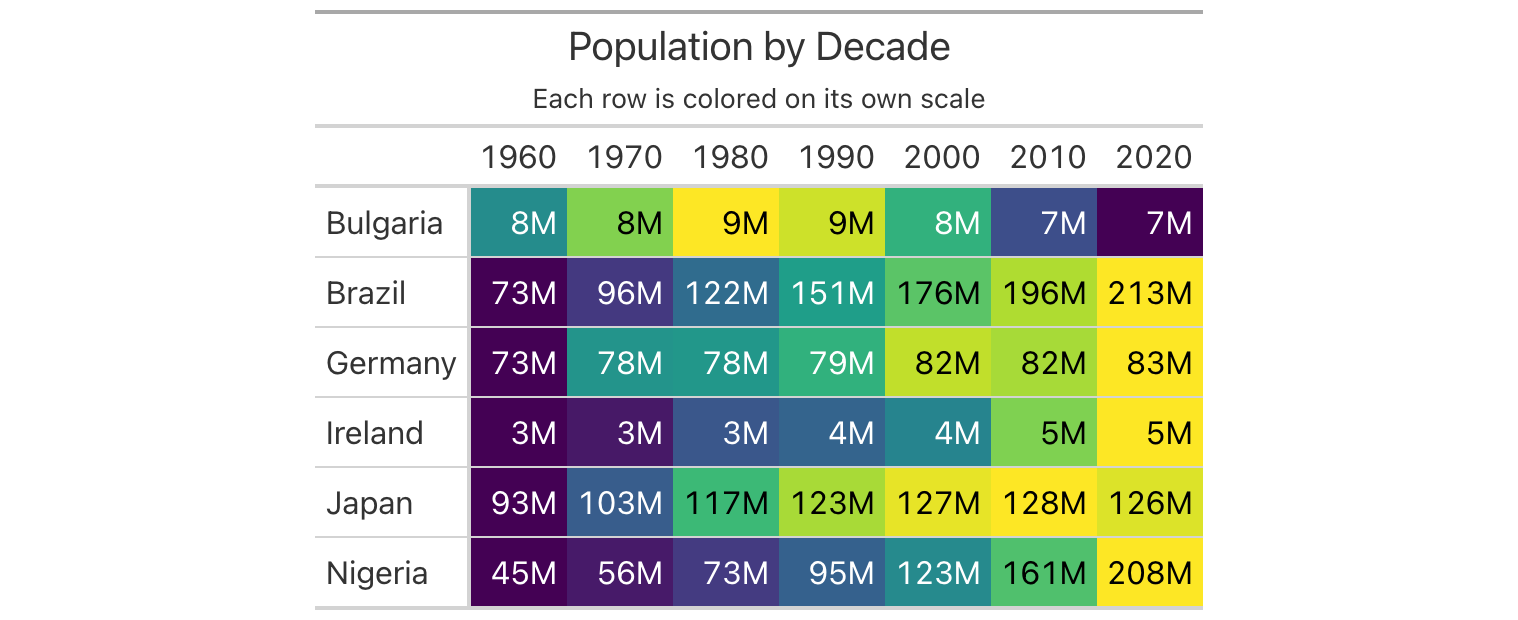

Populations of six countries by decade from 1960 to 2020, each row colored on its own viridis scale

The patterns are immediately legible. Nigeria and Brazil brighten steadily from left to right. Japan reaches its peak around 2010 and begins to recede. And Bulgaria, whose population peaked in the 1980s, darkens again toward the present.

The third new argument, fn=, hands the color mapping over to you. It takes a function that receives a list of values (a column, or a row with direction="row") and returns a list of colors of the same length. Any function with that shape will do, but the library also provides three helpers that build such functions for common cases: col_numeric() for continuous scales, col_factor() for categories, and col_bin() for numeric values cut into bins. Here col_bin() sorts horsepower and torque figures from gtcars into four explicitly bounded bands.

from great_tables import col_bin

hp_cars = (
    gtcars.select("mfr", "model", "hp", "trq")
    .sort("hp", descending=True)
    .gather_every(4)
    .head(10)
)

(
    GT(hp_cars, rowname_col="model")
    .tab_header(title="Horsepower and Torque, Binned")
    .fmt_integer(columns=["hp", "trq"])
    .cols_label(mfr="Make", hp="HP", trq="Torque")
    .data_color(
        columns=["hp", "trq"],
        fn=col_bin(palette=["#EDF8E9", "#BAE4B3", "#74C476", "#238B45"], bins=[0, 400, 500, 600, 1000]),
    )
)

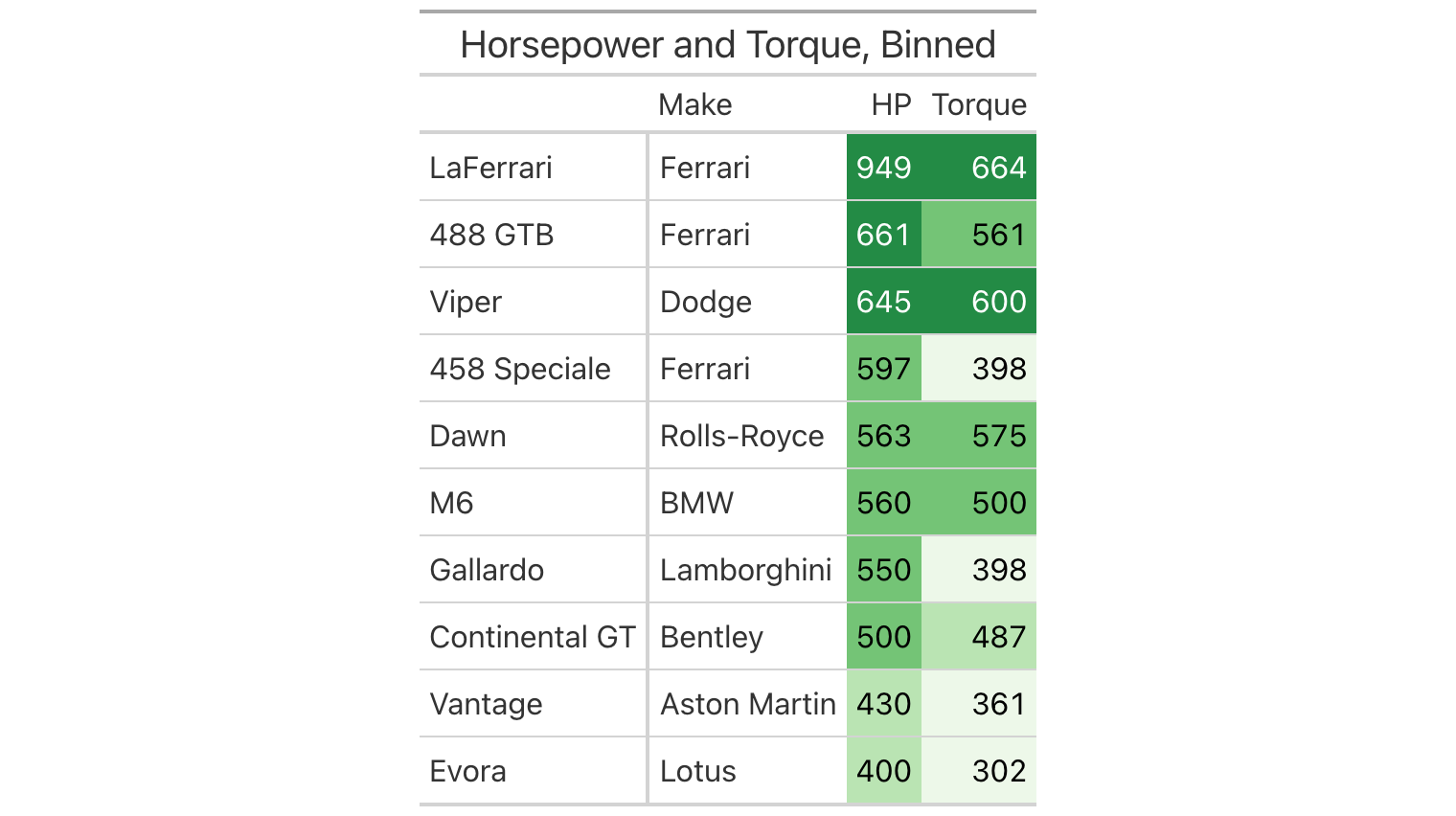

Ten cars with horsepower and torque values colored in four shades of green according to fixed bins

Because the bin boundaries are fixed rather than derived from each column’s range, the two columns share a common scale: the Rolls-Royce Dawn’s 563 horsepower and 575 lb-ft of torque fall in the same band and receive the same green. This is something the automatic scaling of data_color() cannot express on its own.

Finally, two changes to the defaults affect every table that uses data_color(), whether or not it uses any of the new arguments. When the method chooses a text color to sit on top of each fill, it now judges legibility with APCA (the Accessible Perceptual Contrast Algorithm) rather than the older WCAG contrast ratio. APCA models human perception of contrast more faithfully, particularly for mid-tone backgrounds, and you can see its choices in the tables above where light text appears only on fills that are genuinely dark. If you need the previous behavior, contrast_algo="wcag" restores it. Palettes are also now interpolated in the CIELAB color space, which is designed so that equal numerical steps correspond to roughly equal perceived differences, and the resulting gradients are smoother and more even than those interpolated in RGB.

Accessible HTML tables#

A table that looks clear on screen can still be difficult to navigate for someone using a screen reader, because the visual relationship between a cell and its headers is not by itself available to assistive software. As of v1.1.0, the HTML that Great Tables produces carries this information explicitly. Every column header and stub cell receives an id, and every body cell lists the headers it belongs to in a headers attribute. Stub cells are marked up as row headers with scope="row", column headers carry scope="col", and the table as a whole is labeled and described by its title and subtitle through aria-labelledby and aria-describedby.

A new Accessibility page in the User Guide describes all of this in more detail and it also offers guidance on creating tables that work well for everyone.

Smaller changes worth knowing about#

Several smaller changes in these releases deserve a mention. The number formatters gained a min_sep_threshold= argument that sets how many digits a number must have before digit grouping applies. The v1.1.0 release also fixed more than sixty bugs, most of them in the number formatters.

LaTeX output received a great deal of attention as well. Units notation and fmt_chem() now render in LaTeX. Summary rows, decimal alignment, and stub indentation are rendered correctly. A long list of escaping problems with special characters has also been resolved.

Getting started#

Great Tables v1.1.0 is available now on PyPI, so pip install --upgrade great-tables brings everything described here. The documentation site covers each new method with runnable examples, and the full changelogs for v1.0.0 and v1.1.0 list every fix and change in detail.

Looking back across both releases, the common thread is a table that knows more about what it contains. It knows that a fraction, a formula, or a link has a proper form. It also knows which cells deserve emphasis because of what they hold rather than where they sit. Many people contributed to this work, and we are especially grateful to @LuisFigueroaG, @raashish1601, @manan28025, @Rodrigo-Palma, @taekop, @blaahhrrgg, and @naseem173. If you have a feature to request or a bug to report, the GitHub repository is the right place to get in touch!
